IX Series

Inox PCAP Touch Monitor – IX series

Product Features

Industrial stainless steel touch monitor (Grade 304)
IP-67/NEMA 4X rated with waterproof connectors
LED backlight 50,000 lifetime hours
VESA 75/100 mounting & Yoke mounting
High shock and vibration resistance
Slim and flat ergonomic design
Longevity and low power consumption
Wide temperature range

Waterproof, temperature-resistant, and made to last. Displayboost’s Inox PCAP Monitor provides continuous operation in any outdoor or indoor environment. Industrial-strength, grade 304 stainless steel combines with VESA 75/100 and yoke mounting to create an enclosure that’s both shock and vibration resistant. The IP-67/NEMA 4X waterproofing prevents moisture from getting in and interrupting operation.

Advanced backlighting and a high brightness monitor provide crystal clear resolution. Your screen remains sunlight readable even when under direct sunlight. It won’t wash out and colors stay vibrant, ensuring visibility. Other options include optical films, DC or AC power input, and touch screens, making this display incredibly versatile and great for all kinds of industrial applications.

Certified by 3rd-party environmental testing and an industry-leading 1-5 year warranty.

Inox PCAP Touch Monitor – IX series

No matter the application, Displayboost solutions shine with industry-leading features and performance to improve the visual experience. From digital signage to military solutions to oil rigs, Displayboost can satisfy your needs.

Kiosk

Vehicle

Marine

Medical

Digital Signage

Model	IX1505
Aspect Ratio	15" (4:3)
Brightness (White)	500 / 1000
Constrst Ratio	2500:1
Display Area (mm)	304.12 x 228.1
LED B/L Life Hours	50000
Number of Colors	16.7M
Pixel Pitch (mm)	0.297 x 0.297
Resolution	1024x768
Response Time (ms)	18
Synchronization	LVDS
Viewing Angle (H/V)	176/176
Input Voltage	3.3V
Power Consumption	20.48W
Operating Temperature	-30°C ~ 80°C
Storage Temperature	-40°C ~ 85°C
Humidity	5% ~ 90%
Thermal Shock	-30°C/ 30 min, 80°C/ 30 min, 100 hrs
Vibration	1.5G, (10/500/10, Sine wave) 30 mins/axis, 3 direction (X, Y, Z)
Altitude	Operating: up to 10,000 ft; Non-operating: up to 40,000 ft
Input Connectors	Audio / DVI / VGA / HDMI / DisplayPort /AV / IP Rated Waterproof connectors
On-Screen Display Menus	Picture, Color, Image, OSD, Setup, Information
OSD Keypad	5 Keys

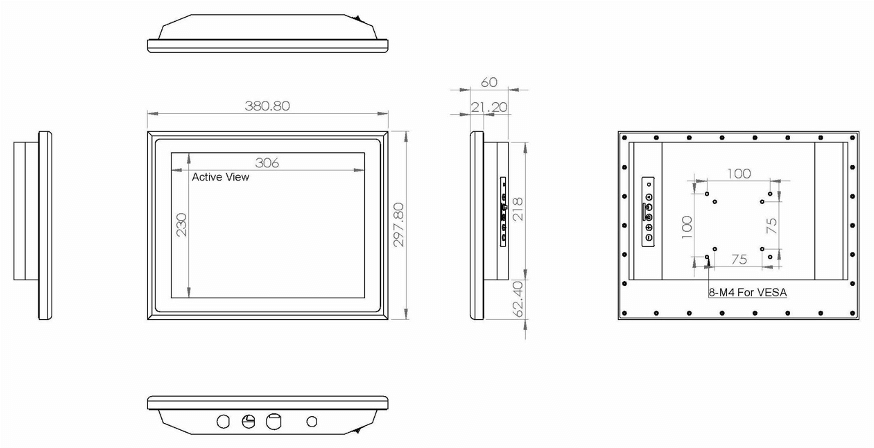

Dimension (H x V x D) (mm)	380.80 x 297.80 x 60 mm
Net Weight (g)	TBD
Enclosure Rating	IP-65 / 66 / 67; NEMA 4 / 4X
Mounting	VESA 75/100; Yoke Mount
Construction	Inox Steel (Grade 304)
Touch Screen Option	4W or 5W Reisistive / PCAP / IR; Light Transmission: Resistive 80%; Projective Capacitive 90%
Glass Option	Anti-Glare / Anti-Reflective; Light Transmission: AG 80%; AR 90%
Optical Bonding Option	UV/ Silicon
Power Options	AC 100~240V / DC 9~36V
Others	VR, Light Sensor & Auto-Dimming
